GB.4.2

Pumped Hydro Energy Storage

1000MW HALKYN MOUNTAIN

 Seawater Hydro Power

This Concept is for a 1000 megawatt pumped seawater hydro energy storage system. Proposal is to recycle the Halkyn Mountain Pant Quarry as a storage lake. Seawater will then be pumped from a turbine house on the Dee Estuary at Bagillt, utilizing surplus off-peak energy from the many adjacent wind turbines

1 GW Energy Storage
Halkyn Mountain Pumped Hydro - Title Page
1 GW Energy Storage

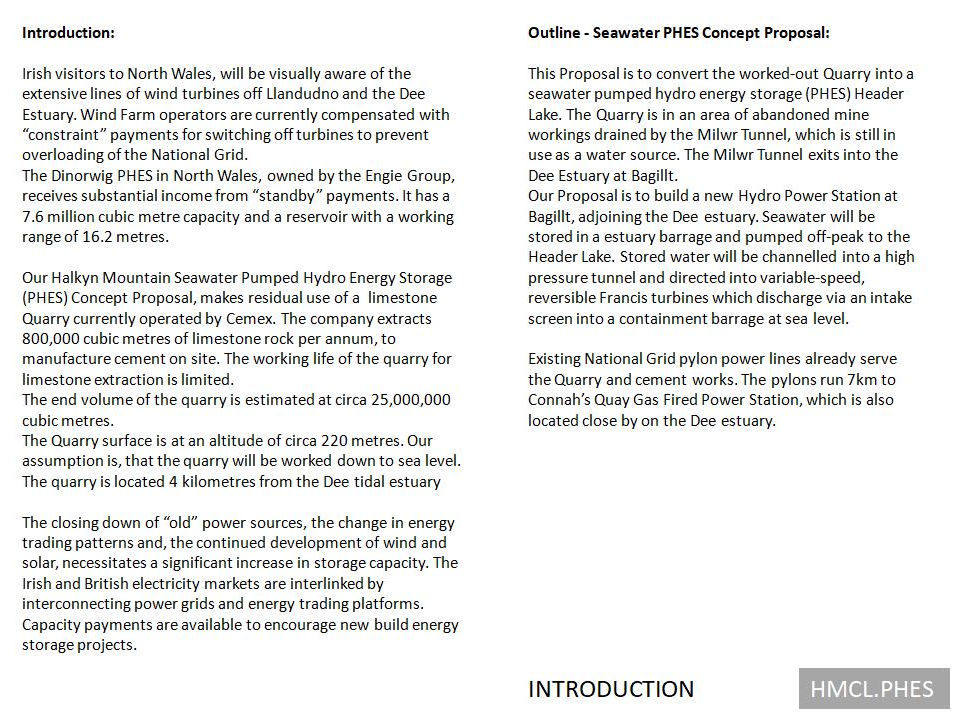

Halkyn Mountain Pumped Hydro - Introduction
1 GW Energy Storage
Halkyn Mountain Pumped Hydro -  Storage lake and Hydro Station
1 GW Energy Storage
Halkyn Mountain Pumped Hydro - Lake Section
1 GW Energy Storage
Halkyn Mountain Pumped Hydro - Capacity Notes
1 GW Energy Storage
Halkyn Mountain Pumped Hydro - Bagillt Turbine House Layout
