6.1.
BRAY HEAD
 Pumped Hydro Energy Storage

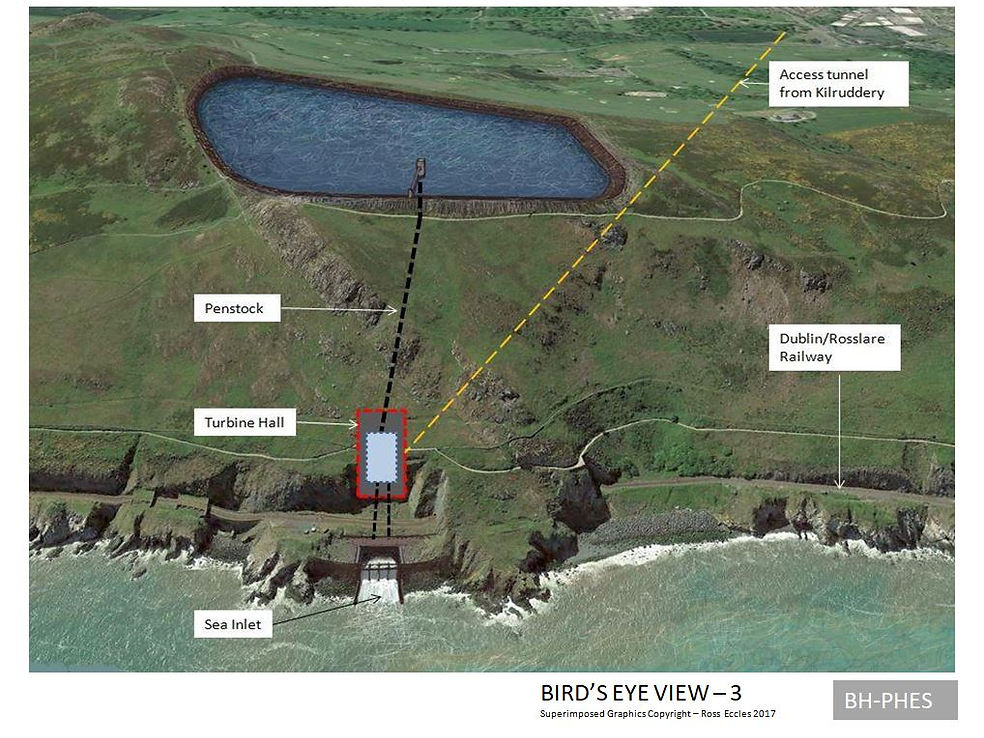

Bray Head is an ideal Site for a Pumped Hydro Energy Storage Lake. The Site has the necessary Head and an endless supply of seawater. The environmental impact is low. The turbine house and other engineering works are concealed from public view at the base of the sea cliffs. The head lake is invisible from most aspects.

Three major intermittent energy wind farm requiring energy storage, are planned near by. It is close to the Energy Grid and markets. Utilizing seawater, dispenses with the need for a lower storage lake. Concept details are provided in the following graphics presentation. This Concept forms part of Ross's Shannon Superhighway Project.

Bray Head Energy Storage
Title Page
Bray Head Energy Storage
Introduction & Location Map
Bray Head Energy Storage
Contour Map
Bray Head Energy Storage
View 1
Bray Head Energy Storage
View 2
Bray Head Energy Storage
View 3
Bray Head Energy Storage
View 4
Bray Head Energy Storage
Lake Site
Bray Head Energy Storage
Site Photographs
Bray Head Energy Storage
Section
Bray Head Energy Storage
Outline Specification and Turbine Layout
Bray Head Energy Storage
Diagrammatic Sections
Bray Head Energy Storage
Project Notes
Bray Head Energy Storage
Construction Methodology / Economic Feasibility Outline
Bray Head Energy Storage
View from Greystones
Torr Head Energy Storage
Alternative East Coast  Site
Bray Head from Greystones
A painting by Ross Eccles
Bray Seafront & Bray Head
A painting by Ross Eccles
