SHANNON ESTUARY BARRAGE



Note added 24.10.20

A Shannon Estuary Barrage can take a multiplicity of forms and be used for a multiplicity of purposes.

Primary Function are listed under the following headings:

  • Surge Tide Flood Control

  • Fresh Water Conservation

  • Hydro Power

  • Inland Waterway Network via a sea lock

SURGE TIDE FLOOD CONTROL

Shannon Estuary
Flood Gates - Location Map
Shannon Estuary
Tidal Flood Gates
Shannonsuperhighway
Photo of Graigue Island, the Barrage Location

FRESH WATER CONSERVATION

Shannonsuperhighway

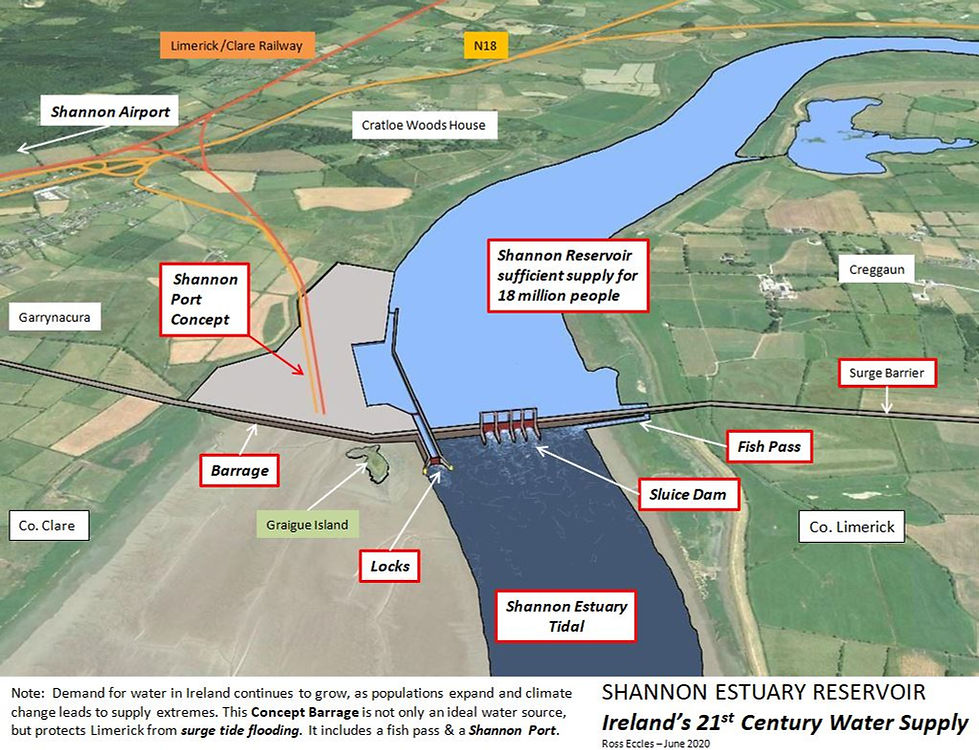

Estuary Barrage and Reservoir

HYDRO POWER

The Concept



Ross's Tidal Barrage Hydro Power Concept, exploits both Shannon Estuary tidal water and Shannon river water flowing into a Containment Lake.

Generating capacity is estimated at circa 200 MW.

(See Swansea Lagoon Project as an example of tidal hydro).

Calculations are based on the following:

The Containment Lake extends circa 11km from Thomond Bridge, Limerick, to the Barrage.

Estimated capacity of the Containment Lake = 18 million cubic metres.

Average river flow at Thomond Bridge is 208 cumecs per second = 18 million cubic metres per day

Tidal range at Limerick Docks = 5.44m. Highest recorded tide = 8,5m

Tides Incoming ( 2 tides every 24hours 50 minutes). Tidal flow average per day = 22 million cubic metres.

Total of outgoing Tides + river flow volume = 40 million cubic metres/day.

Shannonsuperhighway
Estuary Map showing Barrage Location
Shannonsuperhighway
View of the Hydro Barrage showing the integrated Container Port
Shannonsuperhighway
Tidal Map at Barrage Site
Shannonsuperhighway
Barrage Location Options
Shannonsuperhighway
Hydro Containment Lake
Shannonsuperhighway
Containment Lake Volume Calculations
Shannonsuperhighway
Tidal Hydro Dam - Section Diagram
Shannonsuperhighway
Alternative Turret Turbine Arrangement
